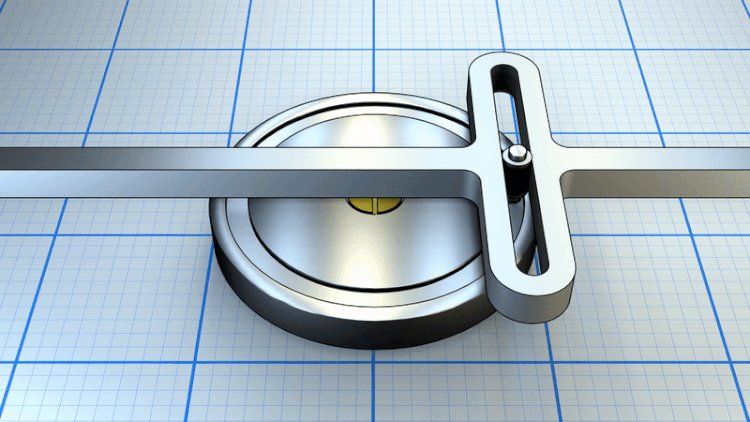

Chendur Singaram @ChendurSingaram Here is a simulation of the mechanism inside your beard trimmer! This is how the blades oscillate side to side when powered by a rotating motor. This is called the Scotch Yoke Mechanism #BeardTrimmer #Technology #Gadgets pic.twitter.com/1cNROwb6Hc February 24th 2023 0 Retweets 0 Likes

How does Cruise control work?

If I remember correctly, the first time I rode in a car with cruise control was on the way to Tahoe with my friend, a couple of years back. Many cars have this technology as we’re moving towards more advanced capabilities like full self-driving vehicles. So here is how it works!

Introduction

Before I proceed, let me clarify that I am referring to cars that run on gasoline. Once activated, the cruise control feature lets a car cruise at a constant speed without having you press the accelerator pedal constantly. But I won’t go into other details of the functions of a Cruise control as it’ll only tell you what it does than how it does. So here we go.

Basic operation

1. The first step is to determine the car’s current speed. This is done using a speed sensor that is located on one of the wheels. The speed sensor sends this information to the ECU (Engine Control Unit).

2. The ECU then compares it to the set speed entered by the driver (in many cases it’s the current speed when you engage the cruise control in an attempt to maintain that speed). If the car is traveling slower than the set speed, the ECU sends a signal to the throttle control system to increase the throttle opening. If the car is traveling faster than the set speed, the ECU signals the throttle control system to decrease the throttle opening.

3. How does increasing the throttle valve opening increase the speed of the car? The more the valve opens up, the more air is intake from the environment through the throttle body. Which results in more fuel intake into the engine cylinders for maintaining the air/fuel ratio. The faster the crankshaft rotates due to combustion, the faster the car travels.

But how do we control the exact position of the throttle valve?

Let’s say our current speed is 10 mph, and that the desired cruise control speed is 100mph. The difference is 90mph so we need to open the throttle valve almost fully to allow a lot of air intake in order to reach the desired speed.

But if the difference is only 5mph, opening the throttle valve fully can result in the car overshooting and going beyond the desired speed. It’s difficult to control the car at the same speed. So in this case, we might need to open it only a little bit more in order to make up for the small difference.

How do these observations shape the algorithm that we can use that adjusts the throttle valve position accordingly?

PID control

The algorithm used to control the throttle valve position exactly is a PID control. It works by calculating the error between the current speed and the desired speed. And then adjusting the throttle valve based on three factors: proportional (P), integral (I), and derivative (D).

This needs a separate blog post of its own. But if you’re hearing this for the first time and interested to know the specifics, here is a video that explains everything about it in a few minutes.
