How do Segways self-balance on 2 wheels?

The general idea behind balancing a Segway applies to a Unicycle as well.

When you’re riding a bicycle, you actively make efforts and use your legs to balance once you come to a stop. This isn’t the case in a Segway at rest - the controller self-balances the vehicle so you don’t need to place your legs on the ground. But how is it done?

Idea 1: Reaction Torques

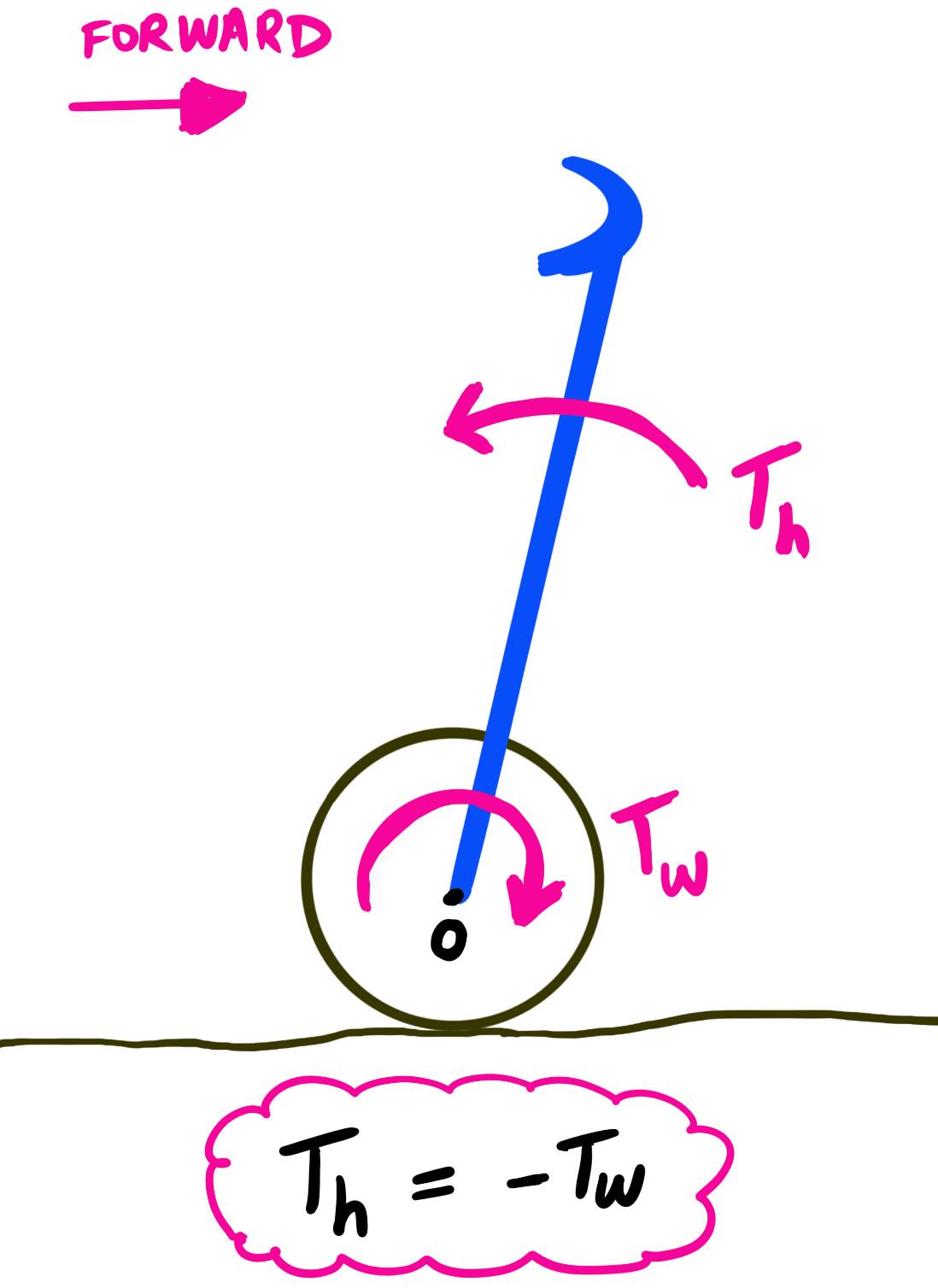

Let’s say we have a simple model of a long vertical handlebar with a wheel that can rotate about its center O as shown in Figure 2. Now if we apply a Torque Tw to the wheels, there is a reaction torque on the vehicle in the opposite direction equal in magnitude. To digest this fact in an easier way, you can draw similarities to Newton’s Third law of Motion - Every force has an equal and opposite reaction.

Idea 2: How does a Segway self-balance the rider?

To use a Segway and commute, a rider steps on it and leans forward to go ahead. To apply brakes or go in the reverse direction, you can lean backwards accordingly. But how does the Segway balance the rider and move ahead at the same time?

1. When you lean forward on a Segway, you are applying torque to the handlebar, making it rotate clockwise. Now we want to counteract and apply a torque in the anticlockwise direction so that the user does not fall face first.

2. We just saw in the earlier section that rotating the wheels clockwise applies a reaction torque on the handlebar in the anti-clockwise direction. This is exactly what we want. So in an attempt to balance the rider, the wheels move forward to counteract the torque.

3. You can never lean forward or backward and fall when the Segway is active. The motors are very reactive and always catch up before significant deviation in the pitch angle theta.

But how do we control and apply the right amount of Torque to make this happen? What if the motor overreacts and pushes you making you fall backward? Let’s see how this is handled.

Idea 3: How to compute and apply the right amount of Torque?

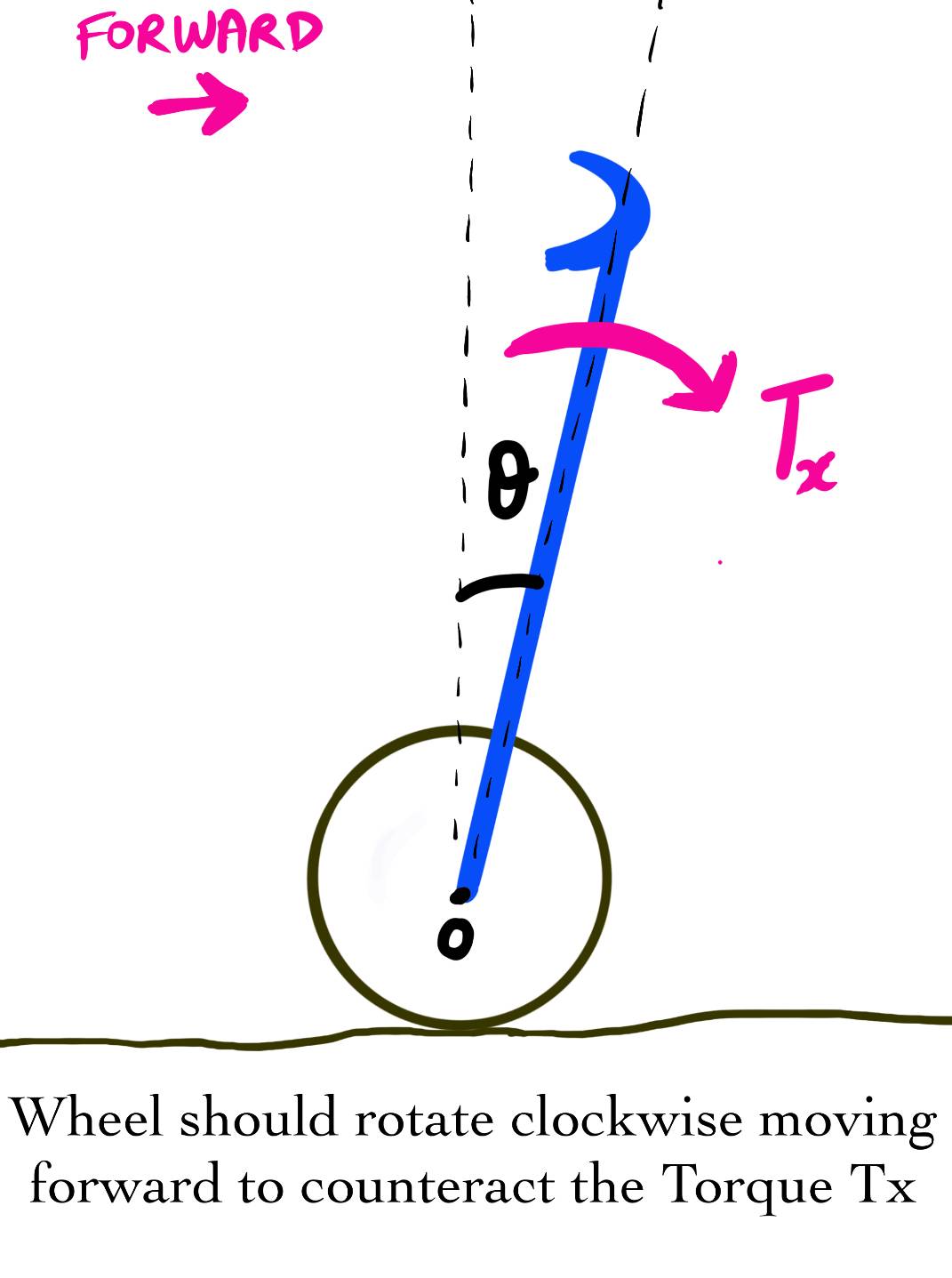

The Segway has IMU and gyroscopic sensors that can determine the lean (orientation angle theta with the vertical, aka pitch) of the user. The larger the theta from Figure 3, the more torque is applied using a PID algorithm to correct for the lean and stabilize the Segway. We went over the PID algorithm briefly in my Newsletter issue on Cruise Control. I’m attaching a link to the YouTube video again if you’d like to read about it. It basically works like your thermostat maintaining the temperature of your room.

Torque = kp(theta) + kd(thetadot)

Where kp and kd are gains - constant numeric values. Theta is the pitch angle and thetadot is the rate of change of pitch. There are more specific cases of the algorithm where the position information is used as well, but I've kept it simple here.

In this example, I’ve taken the desired theta as 0 (vertical position of the handlebar) and desired theta dot as also 0. This correction algorithm runs 100 times a second.

A different control technique called LQR can also be applied for the Segways to self-balance. I’ll leave it to you to explore this further as it’s a ton of Math and is not related to the objective of this newsletter. You can find projects that I’ve done in the past using the same on my website.

Reference: US 6538411 B1
